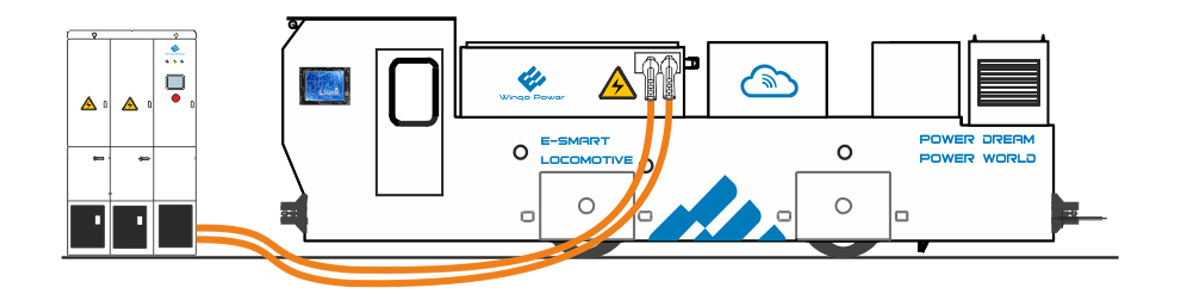

Dynamic system uses new generation rechargeable batteries, and its power can reach 20kWh~500kWh. The dynamic system can be fully charged in 15 minutes, the maximum charging current is 400A, while the cycle lifetime is up to 25000 times. The system is no pollution, safe and reliable.

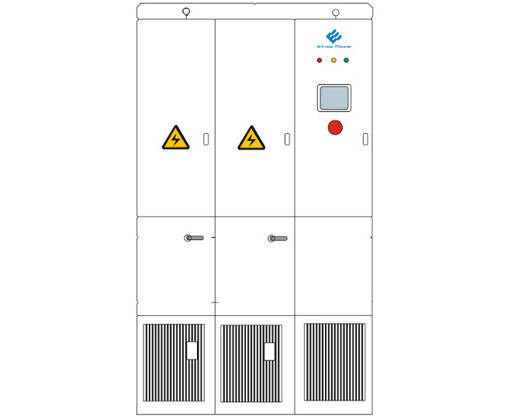

•Advanced technology of T type three level charging, modular parallel connection, intelligent dormancy, efficient energy transformation;
•Support multiple chargers of different power to be connected in parallel, easy expandable;
•Max. charging current of single module(125kW) is 200A;
•Fast charging & discharging (10 minutes), adjustable current;
•IGBT module technology, stable and reliable, powerful, good heat dissipation, low failure rate;
•Wide range of voltage (AC 380Vac±20%);
•The power factor of input side is 0.998, total current of relative harmonic is less than 5%; no pollution to power grid;
•No fan & totally enclosed module design, dust proof, maintenance free;
•Protection against over temperature, over voltage, over current and under voltage.

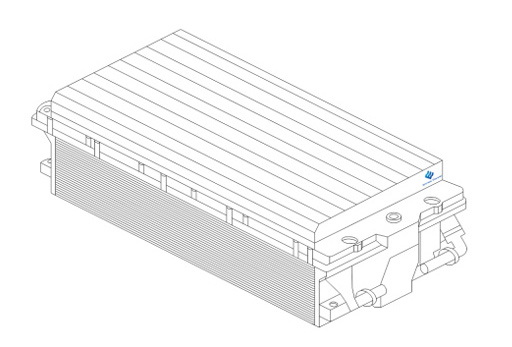

• a new generation of fast charging batteries, the dynamic power can reach 20kWh~500kWh;
• Modular design, meets customer different demand;
• Strong power, continuous discharge current is 6C, load capacity can increase by 30%;
• The maximum charge rate is 20C;
• 15 minutes fast-charging, 6 times charging per day;
• Aluminum PACK case, with unique air duct design, good heat dissipation;
• Unique cold liquid technology to ensure heat balance of the whole module;
• Protection level: IP65;
• Long lifetime, 25,000 times cycle are available at 100%DOD 6C discharge.

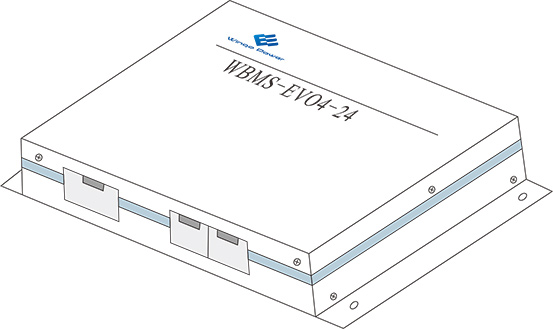

BMS performance
• Voltage sampling precision: ±1%@25℃
• Temperature sampling precision:±1%@25℃
• Current sampling precision:± ±0.1%
• SOC sampling precision:± 5％
• Insulation detection grade
• Active equalization and passive equalization
BMS Stability and reliability
• Resistance against rugged environment
• Resistance against poor power supply
• Resistance against electromagnetic radiation
• Wide voltage working range
• Professional management of relay drive, a nti-overcurrent, anti-short circuit
• High voltage interlock
BMS fire prevention strategy and innovation
• Secondary hardware protection
• General: software protection, relay protection
• Forced secondary protection, ensure no
overcharge, not burning• To make sure power system work in safe area
• Charge management
• Discharge management
Ultra-fast charging
Wingo fast charging module has the capability of high rate (4C) fast charging. Equipped with fast charger, the charging current can reach 400A, which made the dynamic module can be fully charged in 10~15 minutes.
Sufficient power supply
The power module uses a high energy density battery with the highest power of 500kWh; The continuous discharge current of dynamic module can reach 6C, the load capacity increases by 30%, and the maximum charge rate can reach 20C.
Long lifetime
The cycle lifetime of the dynamic module is up to 25000 times, and the life expectancy can reach 5-10 years.
High safety
Advanced BMS, which has the protection function against over voltage, over current, under voltage, over temperature and so on. Advanced liquid cooling technology; Protection level: IP67
