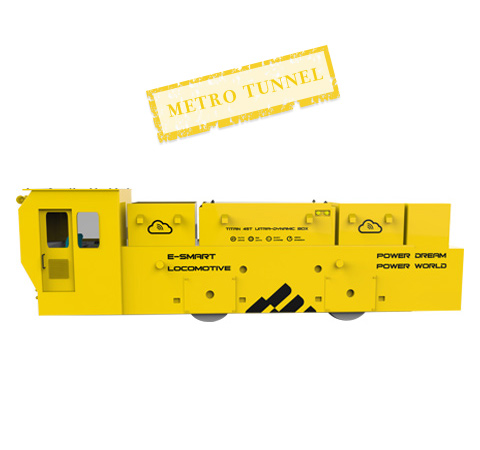

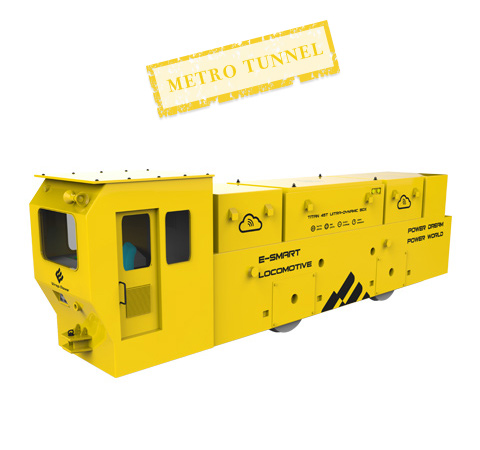

Titan series-45T/55T/66T E-SMART locomotive integrated the technology of DC/AC frequency conversion and AI control. Be equipped with fast charging system, Titan series locomotive can be fully charged in 15 minutes. It is easy to carry the load of 250 tons to complete slag-out mission in a distance of 5km under the condition of 3% gradient. By using Titan series E-smart locomotive, contractor can greatly improve the efficiency of construction and speed up the construction progress. Application: metro tunnel construction
15min ultra-fast charging
loading capacity 250-450T
Efficient up 50%
Zero emission
| weight（T） | 40 |
| Power（kW） | 110×2 |
| Traction weight（T） | ＞235（30‰gradient） |
| Maximum speed（km/h） | 25 |
| Continuous traction（kN） | 85.9 |
| Dimension（L*W* H mm） | 8109×1550×2400mm |
| Braking method | DC-AC variable frequency+ mechanical drive |
| Control method | PLC intelligent frequency conversion control |
| Traction power | Fast charging module |
| Charging time (min) | ＜15 |
| Automatic drive | Support |
| Tunnel networking | Support |
| weight（T） | 45 |
| Power（kW） | 110×2 |
| Traction weight（T） | ＞264（30‰gradient） |
| Maximum speed（km/h） | 25 |
| Continuous traction（kN） | 104 |
| Dimension（L*W* H mm） | 8109×1550×2400mm |
| Braking method | DC-AC variable frequency+ mechanical drive |
| Control method | PLC intelligent frequency conversion control |
| Traction power | Fast charging module |
| Charging time (min) | ＜15 |
| Automatic drive | Support |
| Tunnel networking | Support |
| weight（T） | 50 |
| Power（kW） | 135×2 |
| Traction weight（T） | ＞280（30‰gradient） |
| Maximum speed（km/h） | 25 |
| Continuous traction（kN） | 116.6 |
| Dimension（L*W* H mm） | 8109×1550×2400mm |
| Braking method | DC-AC variable frequency+ mechanical drive |
| Control method | PLC intelligent frequency conversion control |
| Traction power | Fast charging module |
| Charging time (min) | ＜15 |
| Automatic drive | Support |
| Tunnel networking | Support |
| weight（T） | 55 |
| Power（kW） | 160×2 |
| Traction weight（T） | ＞300（30‰gradient） |
| Maximum speed（km/h） | 25 |
| Continuous traction（kN） | 110 |
| Dimension（L*W* H mm） | 8260×1550×2400mm |
| Braking method | DC-AC variable frequency+ mechanical drive |
| Control method | PLC intelligent frequency conversion control |
| Traction power | Fast charging module |
| Charging time (min) | ＜15 |
| Automatic drive | Support |
| Tunnel networking | Support |
